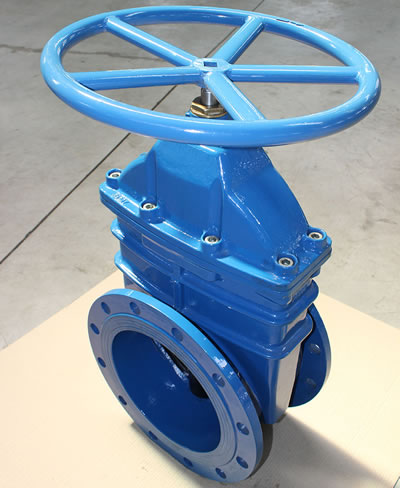

AWWA C509 Gate Valve (NSF-61 Certificated)

Size and Working Condition:

Working temperature: 0.6˚C~52˚C

Working pressure and size:

Flanged gate valve:              150psi 3''~48''; 250psi 3''~24''

Mechanical joint gate valve:  150psi 3''~48''; 250psi 3''~24''

Grooved gate valve:              150psi 3''~12''; 250psi 3''~12''

Application:

 Drainage, water treatment, diversion works, etc.

BS 5163 Gate Valve (ACS Certificated)

 Standards and Specifications:

1. Design standard conforms to: BS 5163

2. Face to Face conforms to: BS 5163 PN10/16

3. Connection flange conforms to: EN 1092-2 PN16

4. Inspection and testing standard conforms to: BS 5163

5. Operating nut, hand wheel, chain wheel, gearbox, etc.

 Size and Working Condition:

Working temperature: -15˚C ~ +150˚C

Working pressure and size: PN10/PN16 DN50～DN600

EN 1171 GATE VALVE (ACS Certificated)

Standards and Specifications:

1. Design standard conforms to: BS EN1171

2. Face to face conforms to: BS EN 558 14/15 series

3. Connection flange conforms to: EN 1092-2

4. Inspection and testing standard conforms to: BS EN 12266-1

 Size and Working Condition:

 Working temperature:-15˚C ~ +150˚C

 Working pressure and size:

PN10:DN50～DN1200

PN16:DN50～DN600

PN25:DN50～DN300
